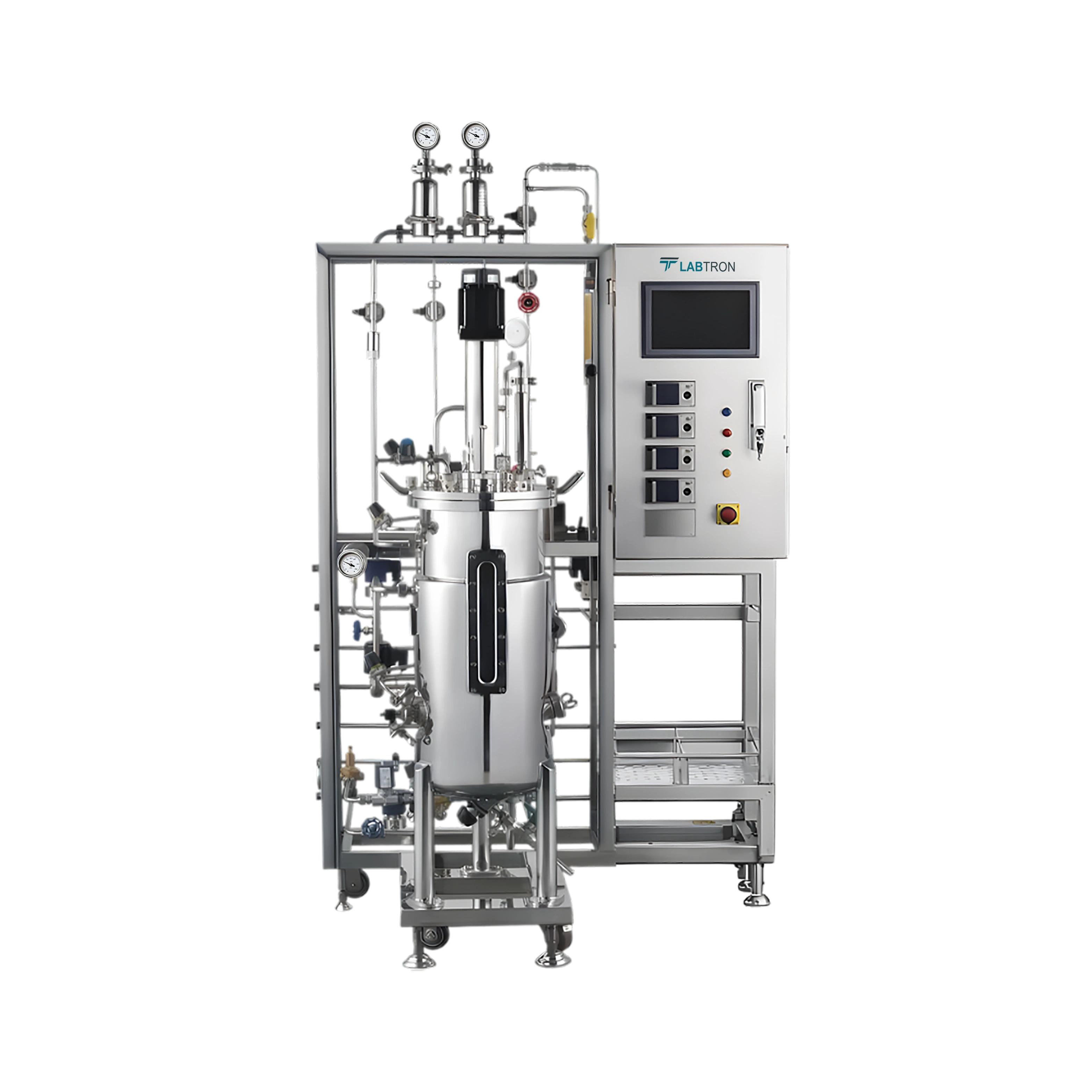

Stainless Steel Bioreactor LSSB-B10 has a total capacity of 30L with a working volume of 21L. This allows for efficient mixing, aeration, and enough headspace for proper gas exchange during fermentation. To control the temperature, the bioreactor uses a jacketed water bath that surrounds the tank. A circulating pump keeps the water moving through the jacket, ensuring even and consistent heat distribution. Our stainless-steel bioreactor is ideal for fermentation and bioproduction and is widely used in industries such as pharmaceuticals, food, energy, agriculture, and scientific research.
| Total Volume | 30L |
| Working Volume | 21L (70%) |
| Tank Material | SUS316L |
| Jacket Material | SUS304 |
| Tank Shape Ratio | Diameter: Height = 1: 2.2 to 2.5 (good aeration) |
| Internal Surface Finish | Mirror polish, Ra < 0.4 µm |
| External Surface Finish | Matt or brushed |
| Sight Glass | Long, with wide viewing angle |
| Tank Lid Ports | Defoaming electrode, inoculation port, exhaust port, 4 feeding holes |
| Tank Bottom | Fermentation bottom valve, discharge valve, seed transfer pipeline; no dead corners; steam sterilizable |
| Interfaces | Temperature, pH, DO electrode interfaces, sampling valve |
| Design Pressure | Tank: 0.1 to 0.3 MPa; Jacket: -0.1 to 0.4 MPa |
| Sterilization | Online steam sterilization |
| Air Intake | 1 (automatic) |
| Ventilation Method | Deep-layer, detachable annular air distributor |
| Air Control | TMFC (repeatability: 0.2% FS, stability <1%/year) |
| Max Ventilation | 2 VVM; 0 to 350 L/min |
| Exhaust System Components | Exhaust gas condenser, separate sterilization/fume discharge, bypass |
| Exhaust Pipe | ≥3° slope, liquid-free, bacteria-free |
| Pressure Measurement | Mechanical gauge + pressure sensor |
| Valve Control | Manual (automatic optional) |
| Exhaust System Display Range | 0 to 0.4 MPa (±0.01 bar), control range: 0 to 0.25 MPa (±0.05 bar) |
| Exhaust System Controller Functions | DO-related control, analysis, batch report, alarms |
| Tank Sterilization Temp | 100 to 130°C |
| Time | 0 to 60 min |
| Control | High-quality diaphragm valve |
| Process Steps | Filter line sterilization, tank sterilization, sterile water system |
| Mixing System Stirring Type | Top-mounted mechanical |
| Shaft | Special alloy, precision balanced, stable, long-lasting |
| Mixing System Blade Design | 1 quadriclinal + 2 six-flat blade (3-stage system) |
| Speed | 30 to 418 rpm ±0.5% |
| Power | 1 kW (customizable for higher speed) |
| Mixing System Controller Functions | DO cascade, curve analysis, data storage, sequence (10+ segments) |
| Heating Method | Electrically heated jacketed water bath |
| Heat Transfer | High efficiency with circulation |
| Sensor | Pt100, sterilizable, software calibration |
| Control Range | +5°C above cooling water to 50°C ±0.5°C |
| Display Range | 0 150°C ±0.1°C |
| Controller Functions | PID control, sequence control (10+ stages) |
| pH Control Range | 0.00 to 14.00 ±0.01; Control: 2.00 to 12.00 ±0.05 |
| DO Control Range | 0 to 150% ±3% |
| Control Method | Cascade with speed, feed, airflow |
| Foam Control Method | Defoaming electrode + peristaltic pump |
| Dimension | 1650 × 1220 × 2130 mm |
| Packaging Dimension | 1750 × 1350 × 2250 mm |
| Net Weight | 480 Kg |
| Gross Weight | 530 Kg |
Sight glass
Automatic air control
Exhaust gas condenser
Defoaming electrode
Alarm
Data logging
Stainless Steel Bioreactor LSSB-B10 is widely used in pharmaceuticals, food, energy, agriculture, and research for fermentation and bioproduction processes.
Accessories Name | Quantity |
Tank | 1 pc |
Stirring Motor | 1 pc |
Frequency Converter | 1 pc |
Machinery Seal | 1 pc |
Circulating Pump | 1 pc |
Peristaltic Pump | 1 pc |
Tank Bottom Valve | 1 pc |
Pneumatic Diaphragm Valve | 1 pc |
Manual Diaphragm Valve | 1 pc |
Pneumatic Angle Seat Valve | 1 pc |
Solenoid Valve | 1 pc |
Sampling Valve | 1 pc |
Trap | 1 pc |
Intake Flow Meter | 1 pc |
Thermal Mass Flow Meter | 1 pc |
pH Electrode | 1 pc |
pH Wire | 1 pc |
DO Sensor | 1 pc |
DO Wire | 1 pc |
Mechanical Pressure Gauge | 1 pc |
Pressure Sensor | 1 pc |
Temperature Electrode | 1 pc |
Controller | 1 pc |
PLC (Programmable Logic Controller) | 1 pc |
HMI (Human-Machine Interface) | 1 pc |
Fermentation Control System (Software) | 1 set |
