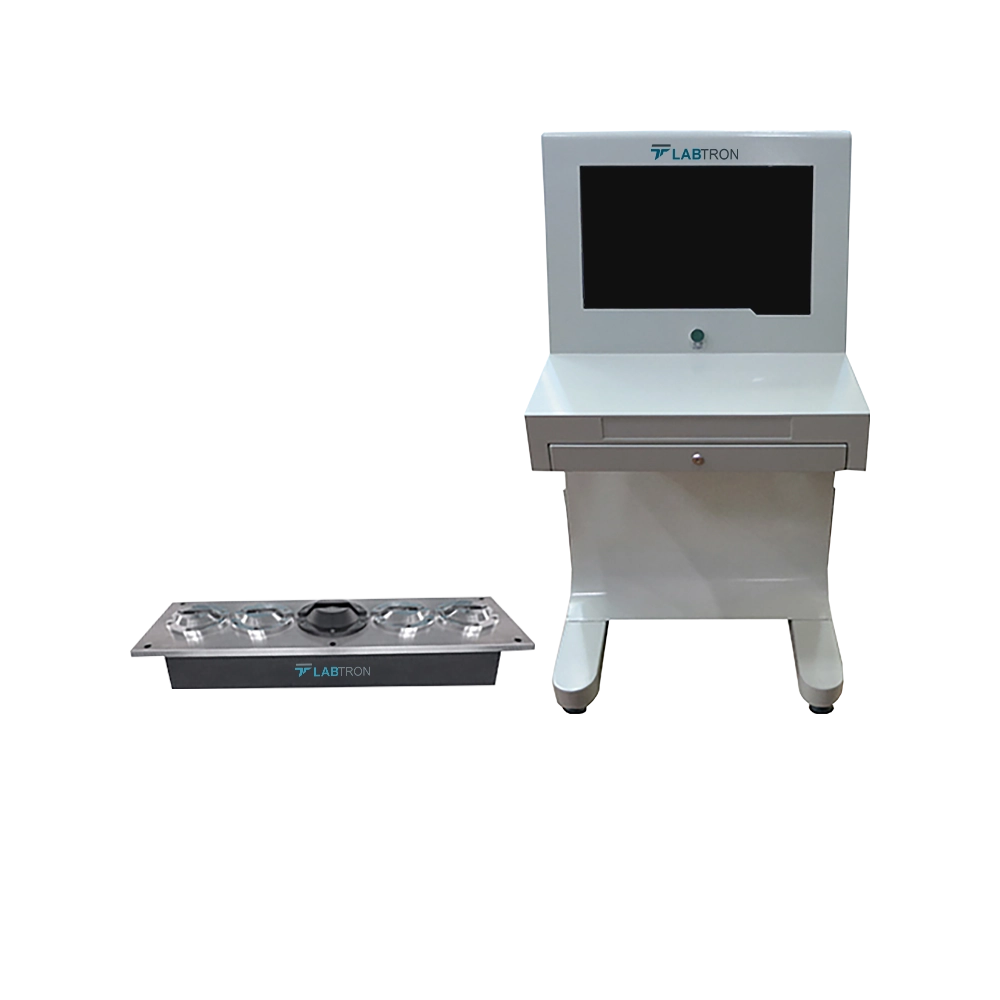

Fixed Under Vehicle Surveillance System LFVS-B10 offers a peak scan rate of 18 kHz. Its digital linear array scanning camera captures clear images and detects small objects with high separation. Our Fixed Under Vehicle Surveillance System incorporates RFID technology for vehicle identification. It supports networking control functions for multiple devices, enabling seamless integration across various platforms.
| Scanning Method | Linear scan, ground coil trigger |
| Maximum Scan Rate | 18 kHz |
| Vertical Resolution (underbody image) | 2048-pixel CCD |
| Image Resolution | >12000 × 6000 |
| Detecting Speed | 1 to 60 km/h (Recommendation: ≤30 km/h) |
| Scanner Data Tine | 10 m (customizable length) |
| Field of View | ≥170° |
| Lighting Assembly | Single sealed LED surface light source, life: 50000h |
| Scanning Direction | Two-way |
| Imaging | Using black and white/color wire array CCD scanning technology, dynamic mode imaging |
| Time of Image Saving/Loading | <1s |
| Image Display Mode | Horizontal display |
| Image Storage Format | BMP, JPEG |
| System Interface Language | Customized |
| Display Resolution | Adapt to various display resolutions |
| Image Data Transmission Interface | RJ45 |
| Scene Image Display | ≥1 way |
| Load Bearing | 50 T |
| Image Auto-saving | 10000 |
| Waterproof Level | IP68 (meets all-weather work) |
| Host Monitor | 22-inch LCD display |
| Host CPU | INTEL Core quad-core processors |
| Mainboard | Special Mainboard |
| Memory | DDR3, > 4 GB |
| Hard Disk | 500 GB |
| Appearance | Stainless steel composite |
| Operating Current | 3A |
| Graphics | DDR3, 192BIT Independent graphics card |
| Ambient Temperature | -20 ℃ to 60℃ |
| Operating Temperature | -35 ℃ to 60℃ |
| Operating Voltage | DC 24V |
| System Power Supply | AC110 to 240V / 50 to 60Hz |
| Scanner Dimension | 1100 × 280 × 234mm (including underground protection devices) |
| Scanner Weight | 105 Kg |
Fixed Under Vehicle Surveillance System is used in airports, prisons, customs, and other government facilities, as well as large public parking lots, to inspect vehicles for prohibited items and ensure security at events and exhibitions.
Car license plate recognition
