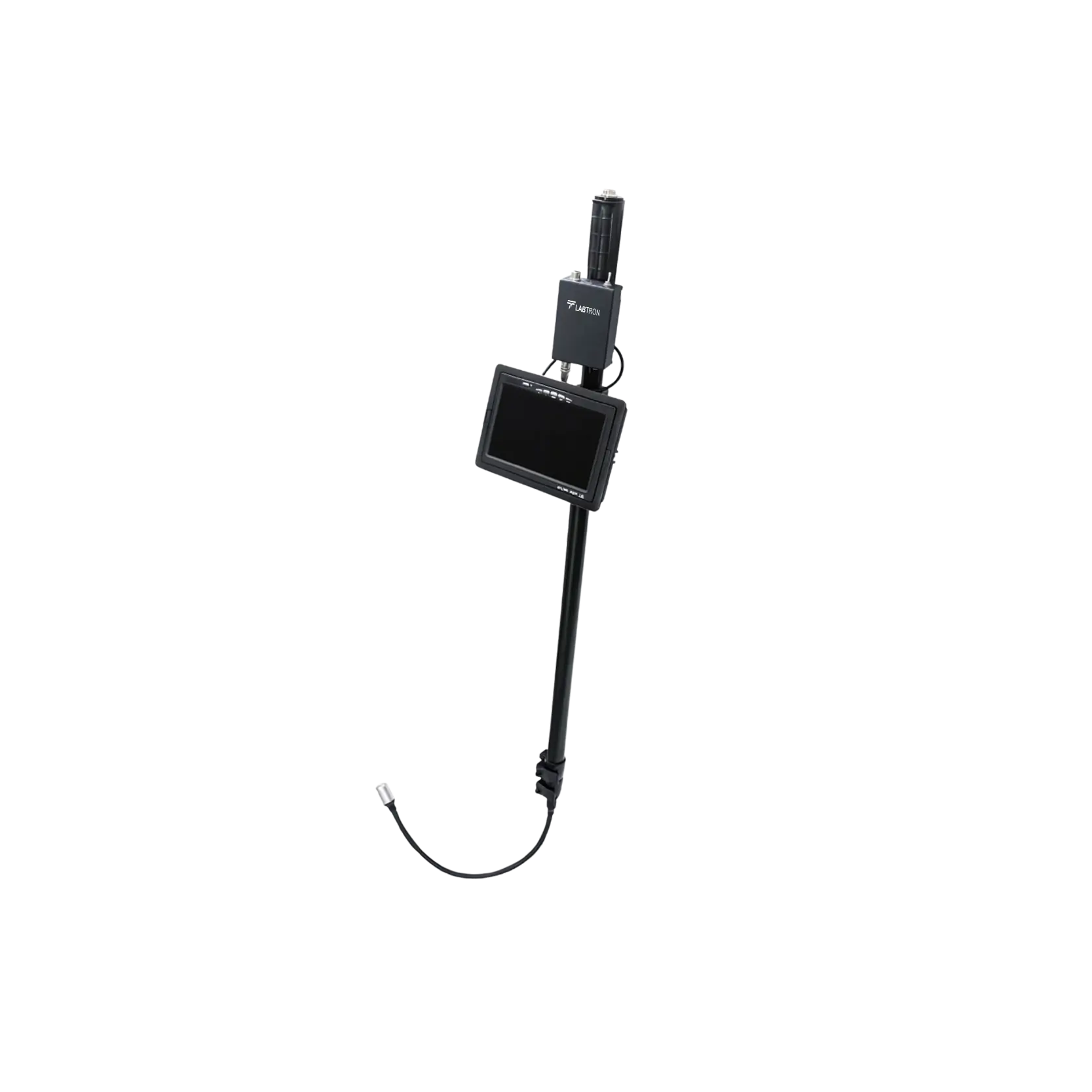

Under-Vehicle Surveillance System LPVS-B12 features a connecting rod length of 310 cm, allowing an extended reach for efficient under-vehicle inspection. It delivers a high signal-to-noise ratio, ensuring a clear image output with minimal visual interference. The camera features an adjustable angle for flexible viewing of hard-to-reach areas during inspections. Our Under-Vehicle Surveillance System is ideal for security checks at high-risk access points.
| Connecting Rod Length | 310 cm |
| Resolution | 480× 320× RGB |
| Flexible Pipe | 500 mm |
| Sensor Pixels | PAL: 720×576 / NTSC: 720×480 |
| Working Temperature | -10℃ to 50℃ |
| Output | 20Hz to 20KHz |
| Camera Lens | Sapphire Blue |
| Lens Visible Angle | 120 degrees |
| Camera Light Source | 12 LEDs |
| Camera Adjustable Angle | Arbitrary angle |
| Sensor Dimension | ¼ inch |
| Display | 7-inch, 16:9 |
| S/N Ratio | 85dB |
| Usb | 2.0 (speed) |
| Power Consumption | 0.5 W |
| Power Supply | 5V DC |
| Packaging Dimension (L×W×H) | 1100 × 300 × 300 mm |
| Dimension (L×W×H) | 23 × 50 mm |
| Net Weight | 0.001 kg |
| Gross Weight | 1.25 kg |
Flexible inspection pipe design
Bright LED lighting support
Waterproof camera protection standard
Scratch-resistant sapphire lens
Shock-resistant build quality
Under Vehicle Surveillance System LPVS-B12 is a high-definition inspection tool designed to detect hidden objects and security threats beneath vehicles. It is widely used at airports, border crossings, military bases, and critical infrastructure checkpoints.
